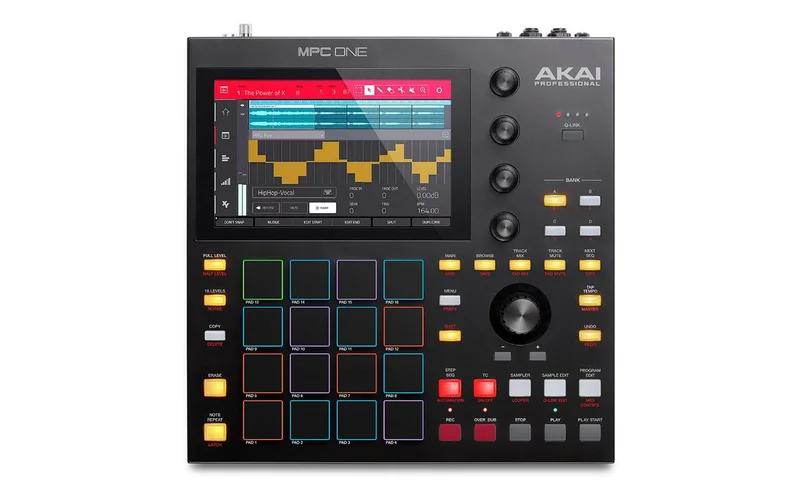

Akai MPC One

Description

KEY SPECS

Pads

• (16) velocity- and pressure-sensitive pads, RGB-backlit
• (8) banks accessible via Pad Bank buttons

Knobs

• (4) 360 touch-sensitive Q-Link Knobs
• (4) Q-Link Knob columns accessible via Q-Link button
• (1) 360 encoder for display navigation and selection via push

Buttons

• (31) dedicated function buttons; red-, amber-, or green-backlit

Display

• 7.0 / 177 mm (diagonal)
• 5.9 x 3.7 / 151 x 94 mm (width x height)
• Full-color LED-backlit display with touch interface

CPU

• Processor: Quad-core ARM processor

RAM: 2 GB

• Storage: 2 GB user storage, 2 GB pre-installed content

Connections

• (2) 1/4 (6.35 mm) TRS inputs (1 stereo pair)
• (2) 1/4 (6.35 mm) TRS outputs (1 stereo pair)
• (1) 1/8 (3.5 mm) stereo headphone output
• (1) 5-pin MIDI inputs
• (1) 5-pin MIDI outputs
• (4) 4 TRS CV/Gate Jacks, 8 Outputs Total
• (1) USB Type-A port
• (1) USB Type-B port
• (1) SD Card slot
• (1) Power Adapter input

Power

• Via power adapter: 19 V, 3.42 A, center-positive, included

Dimensions (width x depth x height)

• 10.7 x 10.7 x 2.1
• 272 x 272 x 53 mm

Weight

• 4.7 lbs
• 2.1 kg
