Description

SIC 1160

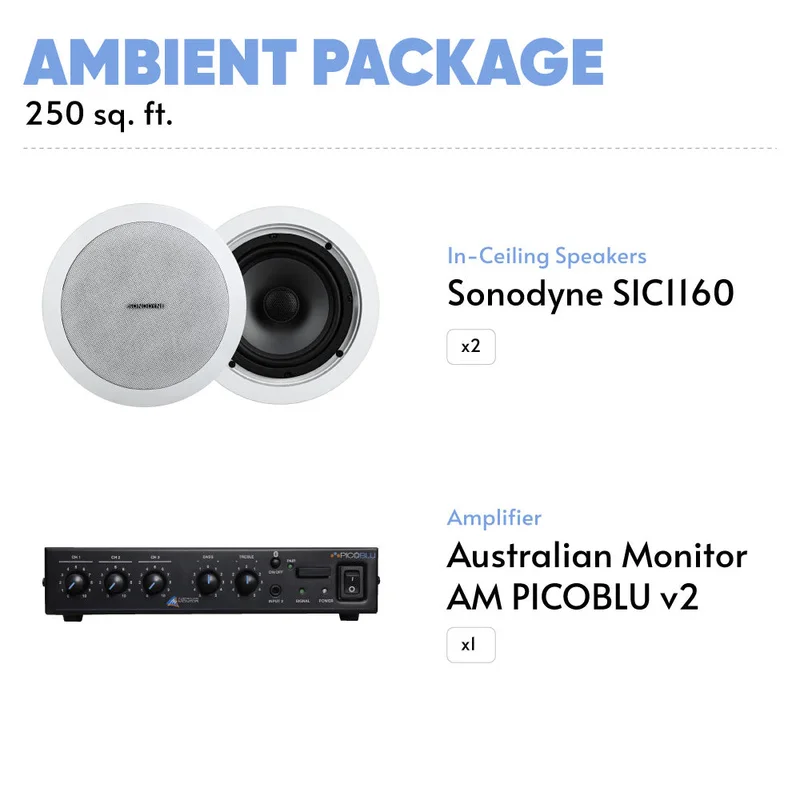

In-Ceiling Speaker

SIC 1160 is an affordable 2 way coaxial ceiling speaker.

Highlights:

• 2 way transducer
• Twist lock fixing
• 100 volt, and 8 Ohm operation
• 6″ coaxial driver

Specifications

Description: 2 way in-ceiling speaker
Transducer Complements: 1 x 6″ coaxial speaker
SPL @ Rated Power: 98 dB @ 10 W
Nominal Impedance: 8 Ohm
Sensitivity (1 W 1M): 88 dB (half space)
Frequency Response: 70 Hz ~ 20 kHz (-3 dB)
Frequency Range: 60 Hz ~ 22 kHz (-10 dB)
Power Handling Direct Mode: 20 W
Power Taps: @ 70V 1.25, 2.5, 5 W
Power Taps: @ 100V 2.5, 5, 10 W
Colours: White
Outer Dimensions: (Depth X DIA) 82 x 228 mm
Wall/Ceiling Cut-Out: 196 mm
Net Weight: 1.9 kg
Mounting Options: Ceiling mount

NOTE: Due to continuous improvements, all specifications are subject to change

PICOBLUV2

30W Mixer Amplifier

Small Form Factor, Bluetooth

The Australian Monitor PICOBLUv2 is our second generation small form factor 30W Mixer Amplifier specifically designed for small space applications such as cafes, restaurants, small retail and classrooms.

The PICOBLUv2 now includes an upgraded and programmable Bluetooth v5.1 module allowing customisation of the broadcast name, PIN number and various security features.

The system still maintains 3 input channels, including microphone, Bluetooth and 3.5mm input jack options and an integrated 30W power amplifier with 4 and 100V output modes.

Capable of standalone, rack or under desk mounting, using optional kits, the PICOBLUv2 can fit any application space with ease.

Highlights

30W mixer amplifier
100 volt or 4 ohm output
3 Channel Mixer. Input 1 – MIC/Line, Input 2 – 3.5mm/Line, Input 3 – Bluetooth/Line
ProgrammableBluetooth name, PIN and security features via Bluetooth PC Control Software
USB-C programming connector
3.5mm TRS jack line input
External mute contact closure
Small form factor
Rack or desk mounting kits options.PICO-RMKandPICO-DMK.

Output Power per Channel: 30W
Frequency Response: 104Hz – 20kHz
Output Mode: 4 Ohm-100V
THD+N :< 0.2%
Input Channels: 1 MIC/Line and 2 Line
Signal to Noise Ratio: > 85dB
Input Voltage: 230Vac 50Hz
Input Sensitivity: MIC: 3mV – Line: 405mV
Mounting: 1RU
Cooling: Fan-assisted
Warranty: 5 years
Product Dimensions: (W x D x H) 217mm x 287mm x 44mm
Shipping Dimensions: (W x D x H) 315mm x 365mm x 105mm
Net Weight: 3.75 Kg
Shipping Weight: 4.7 Kg
GTIN EAN: 9323383020283
