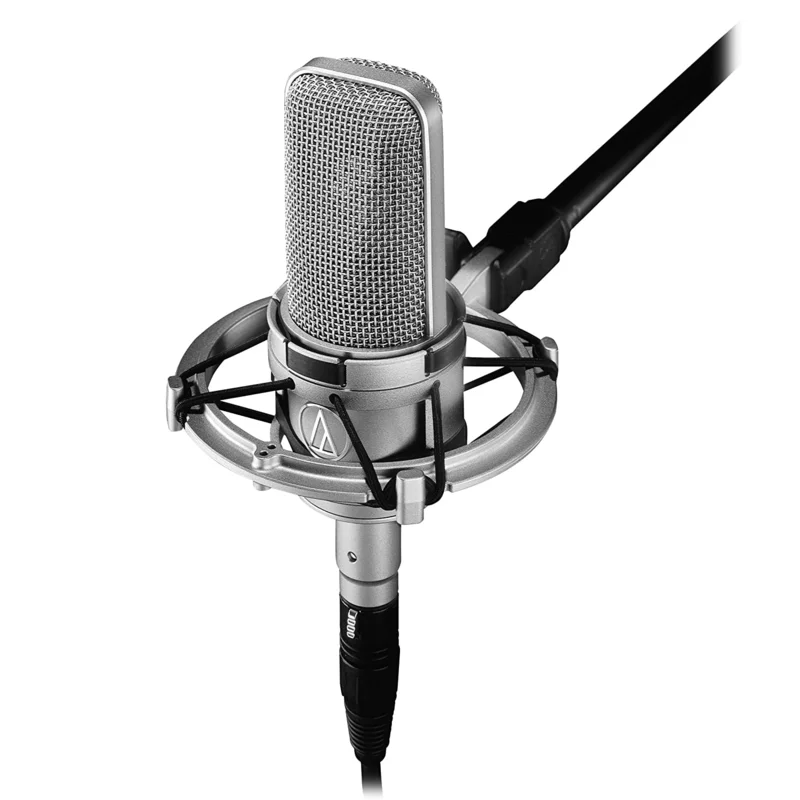

Audio Technical AT 4047/SV microphone Overview
Sonic characteristics reminiscent of early F.E.T. studio microphones Exceptionally low self-noise, wide dynamic range and high SPL capability 80 Hz high-pass filter and 10 dB pad
Features
| SKU | AT4047/SV |
| FREQUENCY RESPONSE | 20-18,000 Hz |
| IMPEDANCE | 250 ohms |
| ELEMENT | Externally-polarized (DC bias) condenser |
| POLAR PATTERN | Cardioid |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 12 dB/octave |
| OPEN CIRCUIT SENSITIVITY | -35 dB (17.7 mV) dB re 1V at 1 Pa |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
| PHANTOM POWER REQUIREMENTS | 48V DC, 3.0 mA typical |
| MAXIMUM INPUT SOUND LEVEL | 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) |
| NOISE | 9 dB SPL |
| SIGNAL TO NOISE RATIO | 85 dB, 1 kHz at 1 Pa |
| SWITCHES | Flat, roll-off; 10 dB pad (nominal) |
| DYNAMIC RANGE | 140 dB, 1 kHz at Max SPL |
| DIMENSIONS | 6.69″ (170.0 mm) long, 2.10″ (53.4 mm) maximum body diameter |
