Description
32-Key USB MIDI Controller Keyboard with 64-Step Polyphonic Sequencing, Chord and Arpeggiator Modes
SWING

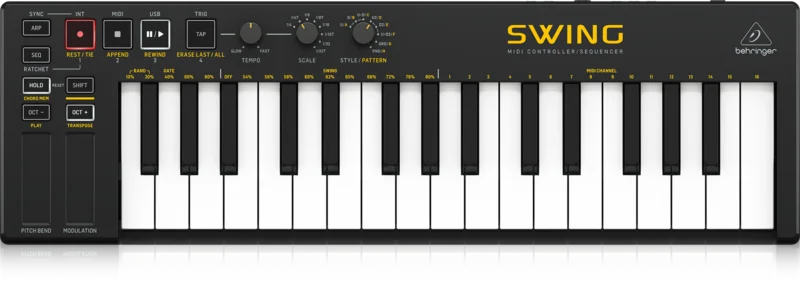

The BehringerSWINGgives you full control over anysynthesizer or virtual instrument in your DAW via USB or MIDI. Featuring a 64-step sequencer with an 8-note polyphonic sequence combined with 32 compact-sized keys and pitch and modulation touch-strips provide unlimited ways to express yourself in a compact and portable package.
The Keys To It All
TheSWINGs 32 compact-sized keyscreate a perfect balance between size and playability. The keys give you the ability to create more nuanced and colorful passages with velocity and after-touch functionality.Use the Pitch and Modulation touch-strips to add even more character to your music.Chord Play Mode allows you to play a chord with up to 16 notes with one single key for some really enchanting Trance music.The SWING also features a 64-step polyphonic sequencer so you can create any progression imaginable and even play over it.Switch to Arpeggiator mode and create anamazingstring of notesthat can sync to the clock of any device the SWING is connected to.
Controls
The Style/Pattern knob on the SWING can select up to 8 saved programs in Sequencer style/pattern, while in Arpeggiator style/pattern, you can select different playing orders such as up, down, inclusive, exclusive, random, note order, double up and double down styles/patterns. Select from 8 different time signatures with the Scale knob and adjust the tempo with the Tempo knob or the Tap button. Press the Record button to start recording a sequence. This also doubles as an Append button when holding down Shift. Use this along with the Stop/Clear Last button and you can edit your sequences and arpeggios on the fly.
Technical Specifications :
Global
| Modes |
Sequencer, arpeggiator, chord play |
Controls
| Keyboard |
32 compact-sized keys, with velocity and aftertouch |
| Knobs |
Tempo, variable Mode, 8 position switch Scale, 8 position switch |
| Switches (backlit) |
Shift, hold/chord, oct-/transpose, oct +/kybd play Arp/seq toggle |
| Modulation |
Touch-strip |
| Pitch Bend |
Touch-strip |
| Transport (seq and arp) |
Tap/rest/tie, record/append, stop/clear last, pause/play/restart |
Connectors
| MIDI In/Out |
5-pin DIN |
| Sustain |
1/4″ TS |
| USB |
USB 2.0, micro type B |
| Sync |
3.5 mm TRS in, out |
| Sync selection |
Dip switches select: internal, usb, midi, sync in |
| CV Outputs |
3.5 mm TS mod, gate, pitch |
Power Supply
| Type |
9 V AC/DC adapter (not supplied) or usb powered |
| Power consumption |
1.5 W max (USB) or 2.7 W max (9 V DC adapter) |
| USB powered |
0.3 A @ 5 V |
| Adapter powered |
0.5 A @ 9 V |
Physical
| Dimensions (H x W x D) |
52 x 489 x 149 mm (2.0″ x 19.3″ x 5.9″) |
| Weight |
1.5 Kg (3.3 lbs) |
