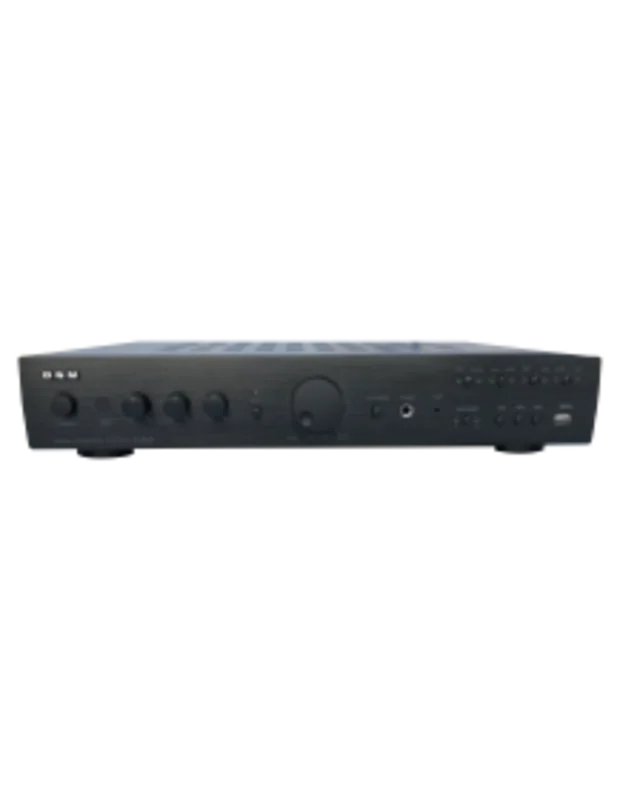

DNM A-302U Stereo Amplifier

Description

A VERY SIMPLISTICALLY DESIGNED SLEEK HIGH PERFORMANCE HI-FI STEREO AMPLIFIER FOR YOUR MUSIC LISTENING.

KEY FEATURES

• INPUTS AVAILABLE: PHONO, LINE 1, LINE 2, USB, DIGITAL(COAXIAL & OPTICAL) BLUETOOTH AND AN MP3 INPUT ON FRONT PANEL FOR EASY CONNECTIVITY TO YOUR PHONE /TABLET OR ANY OTHER DIGITAL DEVICE.
• HEADPHONE SOCKET AVAILABLE FOR PERSONAL LISTENING.
• DIRECT SWITCH AVAILABLE TO BYPASS TONE CONTROLS.
• OUTPUTS AVAILABLE FOR 2 PAIRS OF SPEAKERS. EITHER ONE PAIR , OR BOTH PAIRS OF SPEAKERS CAN BE PLAYED SIMULTANEOUSLY IF THEY ARE RATED AT 8 OHMS IMPEDANCE
• LINE OUT SOCKETS AND RECORD OUT SOCKETS AVAILABLE.

Technical Specification

• OUTPUT POWER – 45 WATT RMS/CH @ 8 OHMS IMPEDANCE AND 75 WATT RMS/CH @ 4 OHMS IMPEDANCE
• TOTAL HARMONIC DISTORTION – 0.5%
• INPUT IMPEDANCE – 47K OHMS
• INPUT SENSITIVITY – 300 mV
• SIGNAL TO NOISE RATIO – 80 dB
• TREBLE – +/- 10 dB
• BASS – +/- 10 dB
• FREQUENCY RESPONSE – 20Hz-20KHz
• DIMENSIONS – 430mm (W) x 350mm (D) x 70mm (H)
