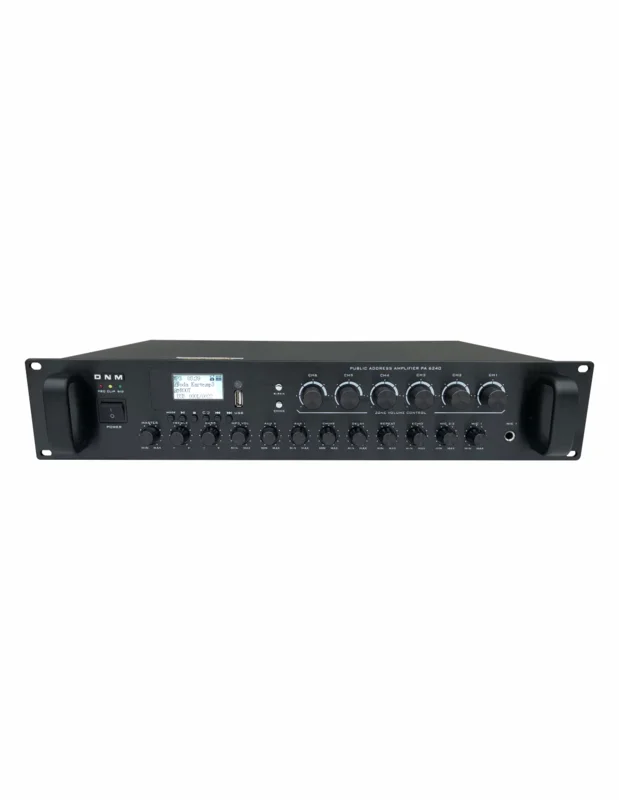

![DNM PA-6240 [Public Address Mixer Amplifier]](https://www.rawaudiocollect.com/wp-content/uploads/product-image/dnm-pa-6240-public-address-mixer-amplifier.webp)
Description
DNM PA-6240 Public Address Amplifier (240W) is a reliable, zone-ready PA solution for offices, restaurants, places of worship, gyms, schools, and homes. It drives multiple 100V line speakers or an 8 load, includes built-in USB/FM/Bluetooth playback, and offers practical paging tools like Mic 1 priority, chime, and a sirenbacked by toroidal power for clean, stable output.
Key Features
240W power output suitable for distributed background music and paging across small to medium spaces.
Six 100V line zones with stepped volume control per zone for precise level management room-by-room.
Compatible with multiple line-matching transformer speakers; supports 8 output as well.
Built-in USB player, FM receiver, and Bluetooth for quick, cable-free music playback.
Three microphone inputs (Mic 1 with voice priority mute) for paging and announcements.
Mic channels include echo, repeat, and delay for clear, intelligible speech.
Two AUX inputs for external players and sources; AUX/Line out to daisy-chain amps or feed an active subwoofer.
Master volume with active bass and treble controls to tailor the overall system sound.
Chime function for announcements and dedicated siren for emergency evacuation.
High-performance toroidal mains and output transformers for low noise and dependable power delivery.
Brushed aluminum anodized front panel with aluminum knobs for a clean, durable finish.
Technical Specifications
| Power Output | 240 W |
| Power Supply | 230 V AC, 50 Hz |
| Total Harmonic Distortion | 0.3% @ 1 kHz |
| Mic Inputs | 3 Mic (Mic 1 with priority) |
| Mic Input Sensitivity | 0.5 mV @ 600 ( unbalanced, Mic 13) |
| AUX Inputs | 2 AUX (650 mV) |
| Line Out | 1 V (for daisy chaining / active sub) |
| Frequency Response | 50 Hz 18 kHz (3 dB) |
| Signal-to-Noise Ratio | > 85 dB |
| Tone Controls | Bass @ 100 Hz, Treble @ 10 kHz (10 dB) |
| Playback | USB, FM, Bluetooth |
| Functions | Chime (announcement), Siren (emergency), Mic echo/repeat/delay |
| Zones | 6 100 V line zones with stepped volume control |
| Outputs | 8 speaker output; 100 V line outputs (all 6 zones) |
| AC Power Consumption | 480 W |
| Voice Priority Mute | Mic 1 |
| Transformers | High-performance toroidal (mains & output) |
| Front Panel | Brushed aluminum anodized, aluminum knobs |
| Dimensions (W D H) | 480 340 90 mm |
