Description

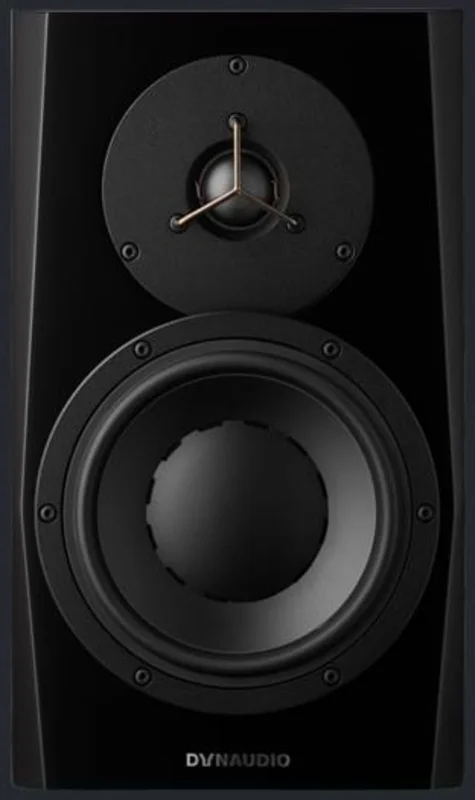

LYD 7
Versatile, powerful, and precise exactly as they should be
A 7in personal reference monitor, designed from the ground up to bring supreme precision to your mixes
This monitor uses sophisticated DSP to extend or curtail low-frequency response by 10Hz, while Position and Sound Balance controls let you fine-tune for total neutrality in your environment. Its larger 7in woofer helps extend bass, while thelow-mass aluminum voice-coil, vented ferrite magnet, and MSP driver take care of precision.
| If you’re a music producer, singer/songwriter, rapper, beatboxer, instrumentalist or any other creator – Join Creators Club and get production gear provided to you at cost for life –Sign up for Creators Club |
Features
- Nearfield Monitor with 7″ Woofer
- Bi-amped speaker design with 2 x 50W and state-of-the-art Class-D amplification
- Bass extension to extend or curtail the low end frequency response
- Two different tunings: one for free standing and one designed for speakers within 50 cm of wall
- Sound balance to influence the overall response of the speaker
Technical specifications
Max SPL (1m, pair): 109dB Principle: Bass reflex Crossover Frequency: 4.3kHz Tweeter: 1in soft dome Mid: N/A Woofer: 7in Dimensions (W x H x D): 186 x 320 x 296mm Weight: 8kg Sensitivity (85dB @ 1m, free field): +6dB: 50mV 0dB: 100mV -6dB: 200mV Specification sheet for LYD part 1
Amplifier: Power (Tweeter/Woofer): HF 50W/LF 50W Type: Class-D Power consumption standby: <0.5W Power consumption max.: 100W Input voltage: 90 – 264V AC, 50 – 60Hz Inputs: XLR balanced / RCA unbalanced Outputs: N/A Cut-off frequencies -6dB limits: Bass extension +10Hz: 65Hz – 21kHz Bass extension 0Hz: 55Hz – 21kHz Bass extension -10Hz: 45Hz – 21kHz Free field frequency response: 55Hz – 19kHz
