Description

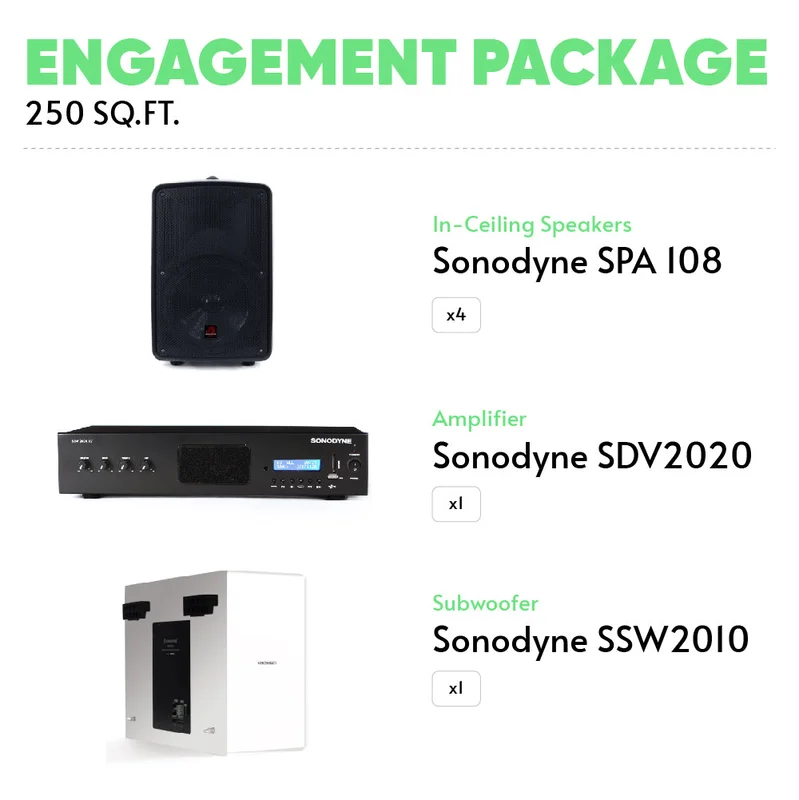

SPA 108

2 way passive speaker

SPA 108 is a two way passive speaker with 8 LF and horn loaded compression driver; detailed specifications are given below

HIGHLIGHTS

• 2 way passive speaker
• ABS moulded cabinet
• FOH and floor mount
• High power handling and SPL
• Wide dispersion
• Pole and wall mount

SPECIFICATIONS

DESCRIPTION 2 way passive speaker with 8 LF and horn loaded compression driver
ENCLOSURE Plastic
TRANSDUCER COMPLEMENTS: HF 1″ HLCD with 1.1″ VC
TRANSDUCER COMPLEMENTS: LF 8″ with 1.5″ VC
SENSITIVITY (1 W 1M) 90dB
FREQUENCY RESPONSE 75Hz ~ 17kHz (-3 dB)
FREQUENCY RANGE 65Hz ~ 19kHz (-10 dB)
DIRECTIVITY (HF H X V) 90 x 50 (HF H x V)
POWER HANDLING CONTINUOUS AES 100W
POWER HANDLING PROGRAM 200W
CROSSOVER FREQUENCY 2.2kHz
COLOURS Black
DIMENSIONS (HXWXD) MM 400 x 260 x 227
NET WEIGHT 7.6kg
MOUNTING OPTIONS Wall bracket, pole mount, floor monitor

NOTE: Due to continuous improvements, all specifications are subject to change

SDV 2020

integrated amplifier

The SDV 2020 is a 2 x 200 watt integrated amplifier meant for fixed install applications. It has multiple inputs ( Mic, line, BT and USB ) and speaker and line level outputs. For high quality stereo sound, choose the SDV 2020

HIGHLIGHTS

• Class D stereo integrated amplifier 2 x 200 watt
• Line, Mic, BT, USB inputs
• Priority mic in
• Power saving Standby mode
• Extensive protection

Specifications

DESCRIPTION Stereo Integrated amplifier
INPUT
LINE: Stereo balanced input : 2 x 3 pin Euro Block connector
Stereo unbalanced input: 2 x RCA
MIC: Balanced input via 1 x 3 pin Euro Block connector
USB, SD Card and BT

LINK Line level output via 2 x 3 pin Euro Block connector
SPEAKER OUTPUT
Stereo output via 1 x 4 pin barrier strip

CONTROLS
MASTER VOLUME CONTROL RANGE TO +6dB
MIC VOLUME CONTROL RANGE TO +6dB
BASS 6dB TO +6dB
TREBLE 6dB TO +6dB
INDICATORS
ST.BY RED: Amplifier in standby mode
GREEN: Amplifier in active mode
HIGH MAINS VOLTAGE PROTECTION Red
AMPLIFIER TYPE Class D with SMPS
AMPLIFIER POWER BEFORE CLIPPING 2 x 200 Watt @ 4 Ohms
2 X 100 Watt @ 8 Ohms
S/N RATIO > 90dB
AMPLIFIER THD AT RATED POWER < 0.2%
FREQUENCY RESPONSE 20Hz ~ 23kHz
INPUT IMPEDANCE 22KOhms
AUTO ST.BY FUNCTION Yes
PRIORITY Yes. Mic over line
COOLING Fan cooled
PROTECTION
Short circuit protection
Thermal protection
Overload protection
High mains voltage protection > 265V AC

POWER SUPPLY
MAINS VOLTAGE 230 V AC, 50Hz
PHYSICAL
FINISH & CONSTRUCTION Black powder coated mild steel cabinet
DIMENSIONS ( HxWxD mm) 98 x 437 x 210
NET WEIGHT 5.5kgNOTE: Due to continuous improvements, all specifications are subject to change

SSW 2010

on wall subwoofer

The SSW 2010 is a high perfromance on wall subwoofer with operations in both mono and stereo mode. With inbuilt HPF, it can be operated in 100 volt or 4 Ohm mode.

Highlights

• Wall mounted subwoofer
• In-built crossover for high pass to satellite speakers
• Both stereo and mono modes
• Both direct and LMT modes
• Smooth, articulated response
• Transducer with dual voice coil

Specifications

DESIGN Side firing subwoofer, vented
ENCLOSURE MDF
TRANSDUCER COMPLEMENTS 1 x 6″ dual voice-coil subwoofer
FREQUENCY RANGE (-10dB) 45Hz ~ 200Hz
FREQUENCY RESPONSE (-3dB) 50Hz ~ 200Hz
SENSITIVITY (1W 1M) 88dB (half space)
SPL @ RATED POWER 105dB @ 60W
IMPEDANCE, DIRECT INPUT 4 Ohm + 4 Ohm (stereo), 8 Ohm (mono)
AMPLIFIER POWER, DIRECT INPUT 100W + 100W
POWER TAPS 70V 7.5W, 15W, 30W
POWER TAPS 100V 15W, 30W, 60W
IMPEDANCE 70V 653, 327, 163 Ohm
IMPEDANCE 100V 666, 333, 167 Ohm
DIMENSIONS (H x W x D) MM 350 x 450 x 180
COLOUR White/ Black
MOUNTS Wall-mounting brackets
NET WEIGHT 12.2kg
GROSS WEIGHT 14.7kg

NOTE: Due to continuous improvements, all specifications are subject to change
