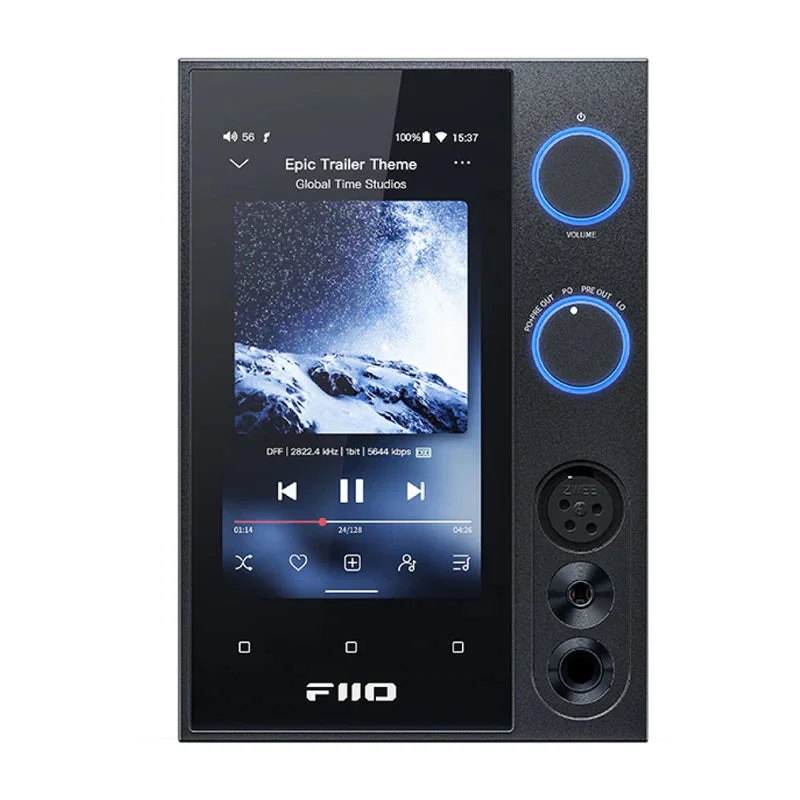

FiiO R7

Description

An All-In-One Device That Makes Your MusicListening Experience A Pure Delight

The FiiO R7 is a feature-rich Digital Audio Player with streaming capabilities and much more. It combines transmitter, decoder, amp, preamp, and media playback functions into one unit. Besides numerous connections, expansion capabilities and a wide variety of operating modes, it can stream media on a gorgeous portrait screen for an extraordinary user experience.

Technical Specifications:

• Headphone Output – 4.4mm (Balanced)
  4-Pin XLR (Balanced)
  6.35mm (Single-Ended)

• Hardware Solution – Soc: Snapdragon 660
  DAC: ES9068AS
  AMP: THX AAA-788+ * 2
  USB: Snapdragon 660
• Working Mode – Android Mode/Pure Music Mode/USB DAC Mode/Bluetooth Receiving Mode/AirPlay Mode/COAX Mode/OPT Mode/Roon Ready
• Screen – 4.97 Inches (720 * 1280) Full-Fit Screen

• Internal Storage/free Space (Rom) – 64GB/46GB
• Gain – Ultra High/Super High/High/Medium/Low
• Memory Card – Single SD Card Expansion, Theoretically Supports Up To 2TB
• Bluetooth Emission – V5.0, AAC/SBC/AptX/AptX HD/LDAC/LHDC
• Max Sampling Rates – USB DAC: 384kHz/32bit; DSD256 (Native) Local Decoding: 384kHz/32bit; DSD256 (Native) USB Audio768kHz/32bitDSD512DoP/D2P/Native COAX IN: 192kHz/24bit OPT IN: 96kHz/24bit COAX OUT: 384kHz/24bit; DSD128 (DOP) OPT OUT: 192kHz/24bit

• Output Power SE – L+R1850mW+1850mW (16THD+N1%)L+R1250mW+1250mW (32THD+N1%)L+R160mW+160mW (300THD+N1%
  Ultra High
  L+R1450mW +1450mW(16THD+N1%)L+R750mW +750mW(32THD+N1%)L+R80mW+80mW (300THD+N1%
  Super High
• Output Power BAL – L+R1000mW+1000mW (16THD+N1%) L+R3650mW+3650mW (32THD+N1%)
  L+R630mW+630mW (300THD+N1%
  Ultra High
  L+R800mW+800mW (16THD+N1%)
  L+R3000mW +3000mW(32THD+N1%)
  L+R320mW+320mW (300THD+N1%
  Super High
• Line Out Ports – 3-Cores XLR * 2
  RCA* 2
• Input/Output Ports – Standard TOSLINK
  RCA
• Network Port – 100M Ethernet Port
• Firmware Upgrade – Local Upgrade, OTA Upgrade
• Button – Volume Knob (It Has Button’s Function)*1 Output Selection Knob (Similar To Button’s Function)*1
• USB – Type-C (USB3.0) * 1 USB A (USB2.0) * 1 (Data Transfer)
• FiiO Link – WiFi And Bluetooth Control For Android, WiFi Control For IOS.
• Power Supply – DC 12V/3A OR AC 100-240V~ 50/60Hz
• Box Contents – 1. FiiO R7 Digital Audio Player
  2. Power Cord*1
  3. Angled Base*1
  4. Double-Sided Tape For Base*4
  5. Fuse*1+6.35mm Adapter*1
  6. USB Data Cable*1
  7. Quick Start Guide
  8. Flat Base*1
  9. Dustproof Plug*2
  10. Warranty Card*1
  11. MicroSD Card Holder*1
