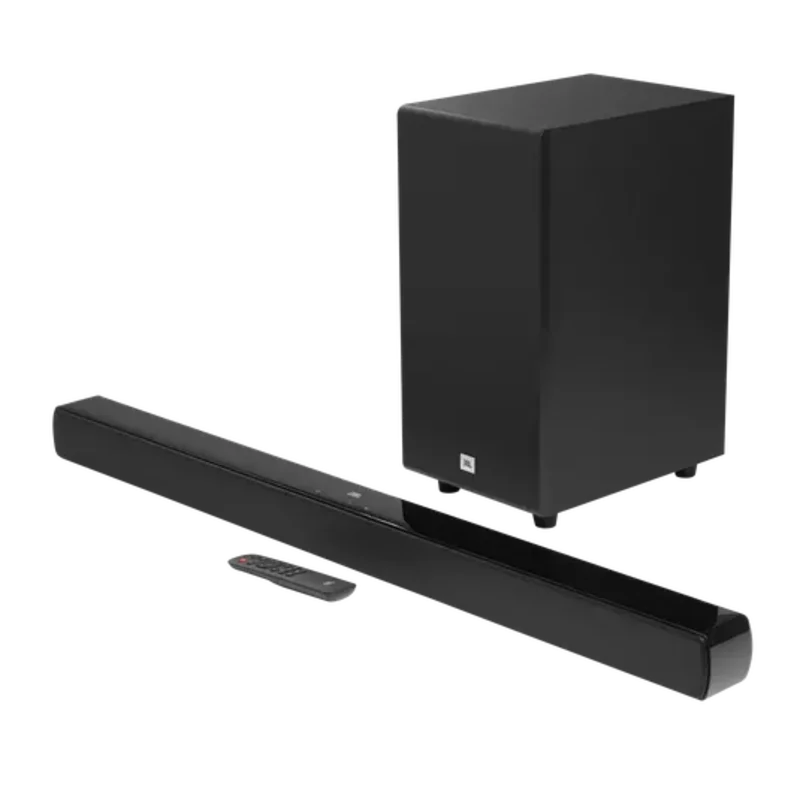

JBL Cinema SB190

Description

Extra Bass. Thrilling 3D sound

Enjoy immersive, theater-quality audio from your couch. The JBL Cinema SB190 gives you booming bass from a wireless subwoofer and soaring virtual Dolby Atmos effects that surround you. One-cable connection makes the powerful, low-profile soundbar a breeze to set up. And of course, you can stream your favorite music right from your phone or tablet. Pass the popcorn and dim the lightsits movie night.

Technical Specifications :

• Power supply – 100 – 240V AC, ~ 50/60Hz
• Total speaker power output (Max. @THD 1%) – 380W
• Soundbar power output (Max. @THD 1%) – 2 x 90W
• Subwoofer power output (Max. @THD 1%) – 200W
• Standby consumption – <0.5W
• Operating temperature – 0C – 45C
• Soundbar transducer – 2 x (48 x 90)mm racetrack driver + 2 x 1.25″ tweeter
• Subwoofer transducer – 6,5″, wireless sub
• Frequency response – 40Hz – 20kHz
• Max SPL – 96dB
• Audio inputs – 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.
• MP3 Codec – MPEG 1 Layer 1/2/3, MPEG 2/2.5 Layer 1/2/3
• MP3 sampling rate – 8 kHz – 48 kHz
• MP3 bitrate – MPEG 1 Layer 1
• Weight (kg):Soundbar– 1.9kg

• Weight (kg):Subwoofer– 5.6kgUSB port – Type A

• USB rating – 5V DC/ 0.5A
• Supporting file format – mp3
• Bluetooth version – 5.1
• Bluetooth profile – A2DP V1.3/ AVRCP V1.5
• Bluetooth frequency range – 2400 – 2483.5MHz
• Bluetooth Max transmitting power – <0dbm (EIRP)
• Bluetooth modulation – GFSK, /4 DQPSK
• 2.4G wireless frequency range – 2400 – 2483MHz
• 2.4G Max. transmitting power – 3 dBm
• 2.4G wireless modulation – GFSK

What’s in The Box?

Soundbar
Wireless subwoofer
Remote control with batteries
Power cords (up to 8pcs depending on region)
HDMI cable
Wall-mount bracket kit with screws
Quick start guide
Warranty card
Safety sheet
