Description

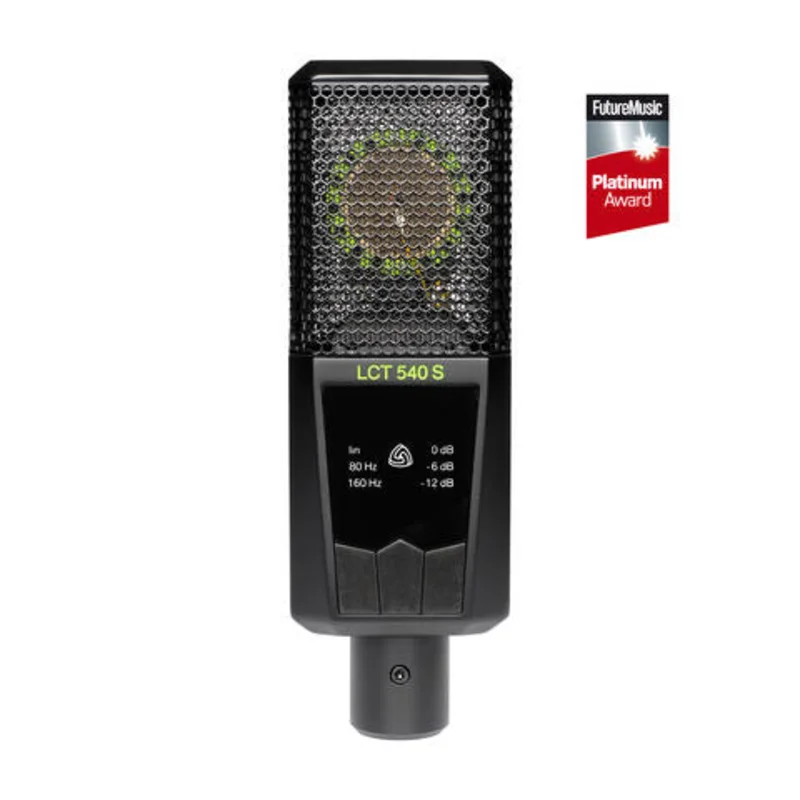

LCT 540 S:Capture every detail.
- 1″ true condenser studio microphone
- Self-noise below the threshold of human hearing
- Ideal for extreme processing
- Low-cut filters and attenuation
- Cardioid polar pattern
Your mic for ultra-detailed studio recordings.
Our unique approach towards electronics and capsule design makes the microphone better than human hearing.With the LCT 540 S, we set a new benchmark in terms of capturing fine-grained details of your recording source.
Record details of your voice and instruments that usually wouldnt even be audible. Make every detail count.
Fit for extreme processing
Even the subtlest nuances sound crystal clear.
With its cutting-edge circuit and capsule design, the LCT 540 S features an impressive dynamic range of 132 dB to capture everything from loud to subtle. You wont hear the self-noise of the mic even after heavily compressing the signal. Material recorded with the LCT 540 S is fit for extreme processing.
How is this mic better
Self-noise values below the threshold of human hearing.
Our hearing threshold is very frequency-dependent. It is less sensitive towards low and very high frequencies and most sensitive around 2 5 kHz. With our specific and unique approach towards circuit and capsule design, we were able to realize self-noise that’ll stay below the threshold of hearing across the entire frequency spectrum.
Technical Details:
Acoustical operating principle: Pressure gradient transducer, externally polarizedTransducer : 25 mm, 1 inPolar pattern: CardioidSensitivity: 41 mV/Pa, -28 dBV/PaSelf-noise: 4 dB(A)Max. SPL for 0.5 % THD: 136 dBSPL, 0dBattenuationSignal / noise ratio: 90 dB (A)Dynamic range: 132 dB (A)Pre-attenuation pad:0 dB, -6 dB, -12 dBLow-cut filter: linear 80Hz (6dB/oct) 160Hz (6dB/oct)Internal impedance: 68 Supply voltage: 48 V 4 VCurrent consumption: 3.6 mAMic enclosure: Zinc die castConnector: Gold-plated 3-pin XLRMicrophone dimensions: 158 x 52 x 36 mm, 6.22 x 2.04 x 1.42 inMicrophone net weight: 371 g,13.1oz
