Description

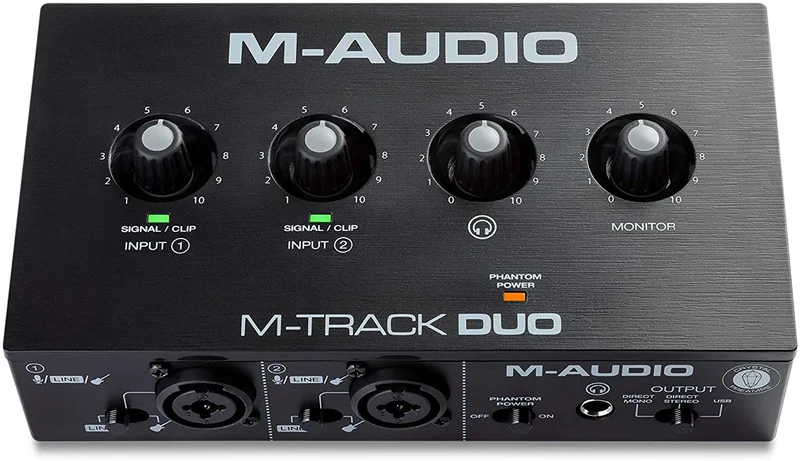

M-Track Duo
48-KHz, 2-channel USB Audio Interface with 2 Combo Inputs with Crystal Preamps, and Phantom Power.
| If you’re a music producer, singer/songwriter, rapper, beatboxer, instrumentalist or any other creator – Join Creators Club and get production gear provided to you at cost for life –Sign up for Creators Club |
Key Features
- 2-Channel USB recording interface for Mac and PC
- (2) Combo inputs with Crystal Preamps amazing audio quality
- Dedicated switches to enable any microphone, instrument, or line level device
- +48V phantom power for connecting studio condenser microphones
- Stereo 1/4 outs; 1/4 headphone out with independent level controls
- USB/Direct Mono/Direct Stereo switch for monitoring mic, line or instrument inputs in stereo or mono
- Included – Pro Tools | First M-Audio Edition, MPC Beats, AIR Music Tech Xpand!2, Eleven Light guitar amp plugins and 20 Avid effects
Technical Specifications
|
Mic Input (balanced XLR) |
|
|
Frequency Response |
20 Hz 20 kHz (+0.1 dB) |
|
Signal-to-Noise Ratio |
109 dB (A-weighted) |
|
THD+N |
0.003% (min. gain, 0 dBu out, A-weighted) |
|
Preamp EIN |
-128 dBu (max. gain, 40 source, A-weighted) |
|
Gain Range |
Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB |
|
Line Input (balanced 1/4″ [6.35 mm] TRS) |
|
|
Frequency Response |
20 Hz 20 kHz (+0.1 dB) |
|
Sensitivity |
-43 dBu |
|
THD |
0.002% (min. gain, 0 dBu out, A-weighted) |
|
Gain Range |
Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB |
|
Instrument Input (unbalanced 1/4″ [6.35 mm] TS) |
|
|
Frequency Response |
20 Hz 20 kHz (+0.1 dB) |
|
THD+N |
0.005% (min. gain, 0 dBu out, A-weighted) |
|
Input Impedance |
1 M |
|
Gain Range |
Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB |
|
Main Outputs, L and R (impedance-balanced 1/4″ [6.35 mm] TRS) |
|
|
Frequency Response |
20 Hz 20 kHz (+0.1 dB) |
|
Signal-to-Noise Ratio |
109 dB (A-weighted) |
|
THD |
0.002% (0 dBu out, A-weighted) |
|
Max Output Level |
+4 dBu |
|
Headphone Output (1/4 [6.35 mm] TRS) |
|
|
Power |
60 mW/Ch, 32 |
|
Frequency Response |
20 Hz 20 kHz (+0.5 dB) |
|
THD+N |
0.02% (A-weighted) |
|
Signal-to-Noise Ratio |
100 dB (A-weighted) |
