Description

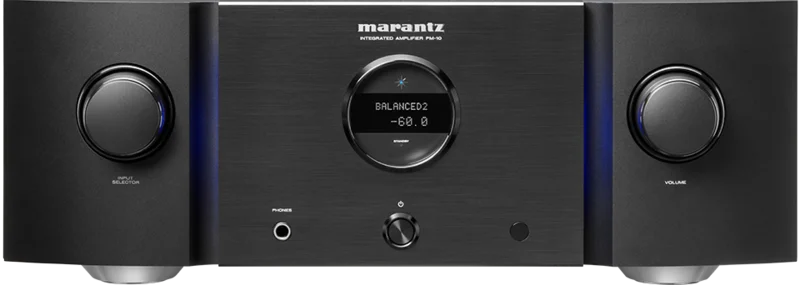

PM-10
INTEGRATED AMPLIFIER
It’s no surprise that the company’s reference series model, the PM-10, is an integrated amplifier built to set new standards with all of today’s music formats as well as for beloved vinyls.
Technical specification
| Available Colors: Gold / Silver / Black / Silver-Gold | Yes / No / Yes / No |
| Metal Front Panel | Yes |
| Power Consumption in W | 270 |
| Standby Consumption in W | 0.3 |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC004PMSA |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in mm | 440 x 453 x 168 |
| Weight in kg | 21.5 |
| Power Output (8 / 4 Ohm RMS) | 200 W / 400 W |
| Frequency response | 5 Hz – 50kHz |
| Total Harmonic Distortion | 0.01% |
| Damping Factor | 500 |
| Input Sensitivity: MM | 2.6 mV / 47 kohm |
| Input Sensitivity: MC | 280 |
| Input Sensitivity: High level | 400 mV / 20 kohm |
| Input Sensitivity: Balanced High level | 800 mV / 40 kohm |
| Signal to Noise Ratio: High level | 111 dB(2V input/Rated output) |
| Input Sensitivity: Power Amp Direct IN | 1,5 V / 20 kohm |
| Signal to Noise Ratio: Power Amp Direct IN | 113 dB |
