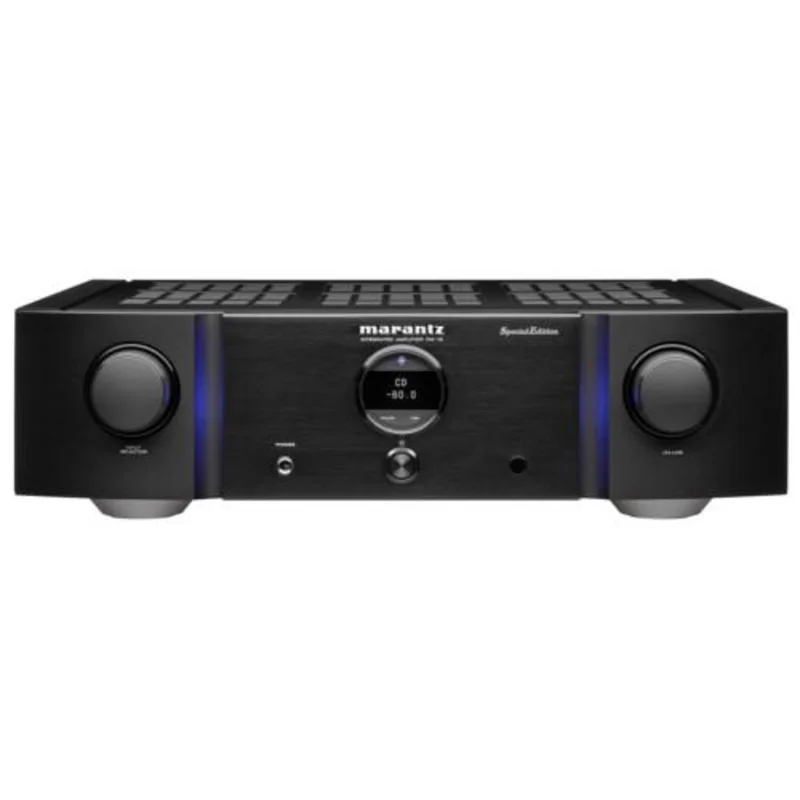

PM-12SE Integrated Amplifier
The PM-12SE is built with just one aim audio performance which is why it uses a fully discrete two-stage design with separate power supplies for the preamplifier and power amp section. This amplifier draws on the design of the PM-10 and PM-KI Ruby, delivering unmatched audio quality for audiophiles.
Key Features
- Classic Design: Sleek and timeless, designed to fit perfectly in any audio setup.
- 2.2 Channels: Offers impressive multi-channel capabilities for versatile sound output.
- 200 Watts Per Channel: Power-driven to deliver rich, dynamic sound across your audio system.
- Custom HDAM: Custom-designed HDAM for optimized sound performance.
- Linear Drive Power Supply: Dedicated power for the pre-amplifier stage for superior audio performance.
- High-grade Components: Built with high-quality components for exceptional sound fidelity.
Technical Specifications
| Feature | Specification |
|---|---|
| Power Output (8/4 Ohm RMS) | 100 W / 200 W |
| Frequency Response | 5 Hz – 50kHz |
| Total Harmonic Distortion | 0.005% |
| Damping Factor | 500 |
| Input Sensitivity (MM) | 2.3 mV / 39 kohm |
| Input Sensitivity (MC) | 250 mV / 100 ohm |
| Signal to Noise Ratio (MM/MC) | 88 / 75 dB |
| Input Sensitivity (High Level) | 220 mV / 13 kohm |
| Signal to Noise Ratio (High Level) | 107 dB (2V input/Rated output) |
| Power Consumption | 130 W |
| Standby Consumption | 0.2 W |
| Dimensions (W x D x H) | 440 x 453 x 123 mm |
| Weight | 15.3 kg |
| Carton Dimensions (W x D x H) | 557 x 536 x 243 mm |
| Carton Weight | 18.4 kg |
| Remote Control | RC005PMSA |
| System Remote Function | Yes |
Input/Output Ports
- Audio Inputs: 6
- Phono Input: MM / MC
- Audio Outputs: 2
- Power Amp Direct IN: Yes
- Speaker Terminals: Marantz SPKT-100+, 2 terminals
- Headphone Out: Yes
- Floating Control Bus: Yes (3.5 mm mono jack x 2)
Additional Features
- Shottky Diodes: Ensures low noise and high-performance output.
- Linear Volume Control: Provides precise volume adjustments.
- BI-AMP and Multichannel Option: For custom, expanded audio setups.
- Low Noise OELD Display: For clean and clear visual output.
Conclusion
The PM-12SE is a powerhouse amplifier that combines classic design with state-of-the-art audio technology, making it an excellent choice for audiophiles and music lovers alike.
