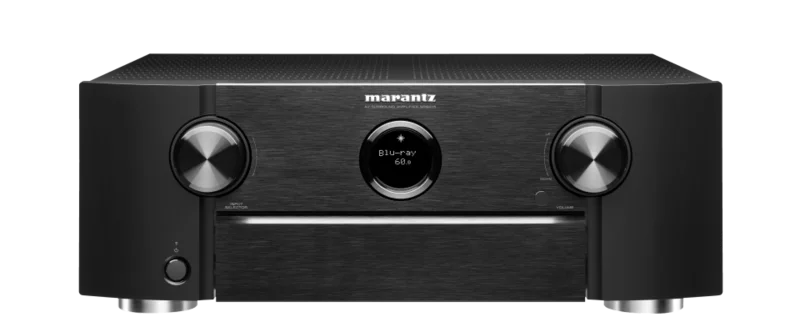

Marantz SR6015

Description

Take in an immersive movie watching experience with expert Marantz craftsmanship combined with premium performance and the latest visual audio formats.

8K Or 4K/120Hz Pass-Through Video Quality
With the latest HDMI technology, enjoy 8K/60Hz or 4K/120Hz quality video from your 8K devices. 8K upscaling is available on all 7 HDMI ports.

Performance, Power And Connectivity
9.2 channel discrete amplifier to deliver the most dynamic content

Get The Most Advanced Object-Based Audio Formats
Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X and IMAX Enhanced processing for you to enjoy immersive, multi-dimensional audio.

Uncompressed 3D Audio From Your Smart TV
Through the main HDMI output, connect your TV with Enhanced Audio Return Channel (eARC) HDMI support, to allow uncompressed and object-based 3D audio formats directly from your smart TV app to your AV receiver.

Technical Specification

• Multichannel Surround
  DTS HD Master / DTS:X / DTS:X Pro – Yes / Yes / No
  DTS Neo:X / DTS Neural:X – No / Yes
  DTS Virtual:X – Yes
  IMAX Enhanced – Yes
  Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization – Yes / Yes / Yes
  Dolby ProLogic Ilz / Dolby Surround – No / Yes
  Auro 3D – No
  Audyssey DSX – No
  Multichannel Stereo – Yes
  Max Number of Processing (Preamp) Channels – 11.2
• Sound Enhancements
  Discrete Power Amplifier – Yes
  Copper Plated Chassis – No
  Power Transformer: Toroidal / EI – EI
  Current Feedback Topology – Yes
  Hyper Dynamic Amplifier Modules (HDAM) – Yes
  Pure Direct – Yes
  Gold plated RCA terminals – Yes
  Clock Jitter Reducer – Yes
  Audyssey – MultEQ XT32
  Audyssey Dynamic EQ / Dynamic Volume – Yes / Yes
  Audyssey LFC – Yes
  Audyssey APP Support – Yes
  Compressed Audio Enhancer: MDAX2 – Yes
• Network
  HEOS Multi-room and Streaming – Yes
  Bluetooth Re-transmit for Bluetooth headphones – Yes
  Alexa / Google Voice Assistant / Apple HomePod – Yes / Yes / Yes
  Network Audio Sharing – Yes
  Lossy Formats: MP3 / WMA / AAC – Yes / Yes / Yes
  Lossless formats FLAC / ALAC / WAV – Yes / Yes / Yes
  Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 – Yes / Yes / Yes
  DSD Audio Streaming – Yes (2.8/5.6MHz)
  FLAC HD 192/24 – Yes
  WAV 192/24 – Yes
  ALAC 192/24 – Yes
  Gapless Playback – Yes (FLAC, WAV ,ALAC ,DSD)
  AirPlay Audio Streaming – Yes (AirPlay2)
  Internet radio – Yes (TuneIn)
  Spotify* – Yes (connect)
  Pandora – Yes
  SiriusXM – Yes
  Compatible with Remote APP for Smart Phones – Marantz 2016 AVR Remote
  Compatible with Remote APP for Tablets – Android / iOS / Amazon Kindle
  Ethernet Ports – Yes
  Wi-Fi – Yes
  Bluetooth – Yes
• HDMI
  HDMI Inputs: Back / Front – 7 / 0
  HDCP2.3 support – Yes
  HDMI Outputs: Main / Zone – 2 / 1
  Video Conversion Analog -> HDMI – Yes
  Analog to HDMI Scaling – 480i/576i up to 8K 60/50
  HDMI to HDMI Scaling – up to 8K 60/50
  GUI Overlay on HDMI – Yes
  HDMI 2.1: 8K/60Hz / 4K/120Hz – Yes / Yes
  HDMI 2.0: 3D / 4K / CEC / ARC – Yes / Yes / Yes / Yes / No
  Enhanced ARC – Yes
  HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR – Yes / Yes / Yes / Yes / Yes (update)
  ALLM (Auto Low Latency Mode) Pass-through for gaming – Yes
  Variable Refresh Rate / Quick Flame Transport / Quick Media Switching – Yes (update) / Yes (update) / Yes (update)
  3D Signal Pass-Through – Yes
  8K signal pass-through / scaling / GUI overlay – Yes / Yes / Yes
  4K Signal Pass-Through / Scaling / GUI Overlay – Yes / Yes / Yes
  HDMI Pass-Through in Standby Mode – Yes
  Picture Adjust / Noise Reduction – Yes / Yes
  CEC – Yes
  DSD Audio Capability – Yes
  Audio Return Channel – Yes
  Auto LipSync – Yes
• Multi-Room / CI
  HEOS Multi-Room Integrated – Yes
  HEOS Link Compatibility: IR/ IP – Yes / Yes
  Multi-Room Zones – 2
  Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog – Yes (2ch) / Yes (2ch) / Yes / Yes
  Zone Audio Output: Speaker / Preout – Yes / Yes
  Zone HDMI Output from HDMI Source – Yes
  IP Control / RS232 Control / Web Control / App Control – Yes / Yes /Yes / Yes
  IR Flasher In – Yes
  Marantz Remote Bus – Yes
  DC Trigger Output – 1
  HDMI Diagnostics – Yes
• Others
  Auto Speaker Setup by Microphone – Audyssey MultEQ XT32
  FL Display – port hole
  Graphic User Interface – GUI – Advanced
  ISF Certification – Yes
  GUI Languages – 3
  Setup Assistant – Yes
  Smart Select – Yes
  Firmware Update by Network / USB – Yes / Yes
  Variable Cross Over – Yes
  Optimized Bass Redirection – Yes
  Bass Sync – No
  ECO Mode – Yes
  Auto Power off – Yes
  Sleep / Timer – Yes
• Inputs/Outputs
  Composite In / Out – 3+1 / 1
  Component In / Out – 2 / 1
  HDMI In / Out – 7 / 3
  Multi-Room Video Out: Video / HDMI – No / Yes
  Analog In / Out – 5+1 / No
  Phono (MM) In – Yes
  Digital In: Optical / Coaxial – 2 / 2
  Multi-Room Out: Analog / Digital – 1 / No
  Multichannel Pre Out – Yes (11.2)
  Subwoofer Out – 2 (independant)
  7.1 Multichannel Input – Yes
  Speaker Terminal: Gold Plated Screw / Regular Screw – Yes / No
  Number of Speaker Terminals – 11
  Speaker A / B – assignable
  Bi-Amp Drive – assignable
  Multi-Room Speaker Terminal – assignable
  Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB – Yes / Yes / No / No / Yes
  USB Audio / Made for iPod / Made for iPhone – Yes / No / No
  AM/FM Tuner – Yes
• Specifications
  Number of poweramps – 9
  Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) – 110 W
  Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) – No
  Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) – 150 W
  Power Output (6 ohm, 1 kHz, 10% 1ch Drive) – 220 W
  70% Guarantee – Yes
• General
  Metal Front Panel – Yes
  System Remote Control – RC042SR
  Pre-Programmed / Learnable / LCD Display – No / No / No
  Power Consumption in W – 680
  Power Consumption No-Sound (ECO on/off) in W – 60 W / 100 W
  Standby Consumption in W – 0.2
  CEC Standby Consumption in W – 0.5
  Network Standby Consumption in W – 3.5
  Network Control On Consumption in W – No
  Maximum Dimensions – 17.3 x 15.7 x 6.3
  Antenna:Horizontal:(W x D x H) in inches – (17.3 x 15.7 x 9.0)
  Antenna:Vertical :(W x D x H) in inches – 17.3 x 15.3 x 6.3
  Weight in lbs. – 28.2
