Description

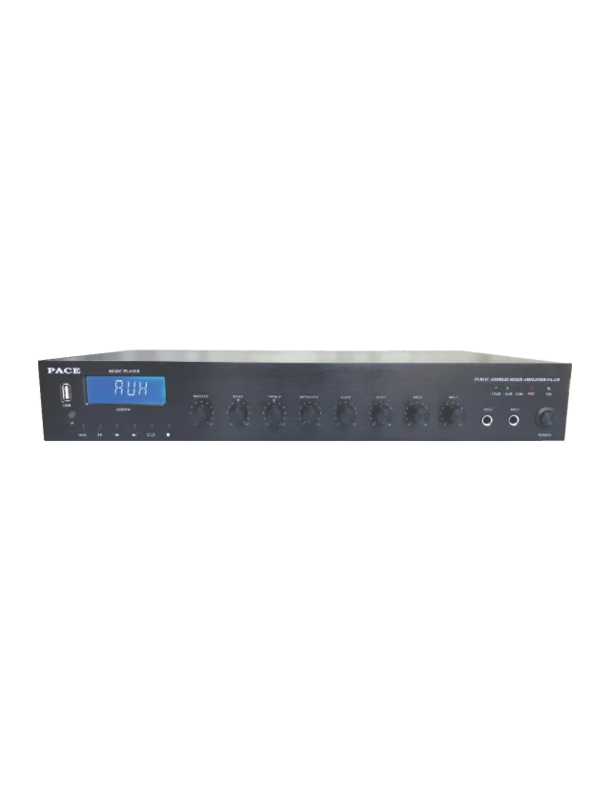

PACE Public Address Mixer Amplifier (PA-120 / PA-200) is a simple, cost-effective solution for announcements and background music in restaurants, retail spaces, classrooms, meeting rooms, offices, houses of worship, and other commercial setups. It features multiple mic and aux inputs, built-in USB/FM/Bluetooth playback, and flexible output modes to suit a range of speaker configurations.
Key Features
Available in two power ratings: 120W or 200W, ideal for small to medium-sized venues.
Two microphone inputs with Mic 1 voice priority mute for clear announcements.
Three AUX inputs for external audio sources, plus built-in USB player, FM tuner, and Bluetooth streaming.
High-quality front display for easy navigation and operation.
Master volume control for overall sound level, plus bass and treble tone adjustment.
Output modes include 100V, 70V, and low impedance (416 ) for versatile speaker setups.
Pre-out connection for linking to an active subwoofer or higher-powered amplifier.
Compact, free-standing design suitable for desks, shelves, or equipment racks.
Note: AUX 3 and the internal MP3 player cannot be used simultaneously.
Technical Specifications
| Power Supply | AC 230 V, 50 Hz |
| Power Output | PA-120: 120 W / PA-200: 200 W |
| Mic Input Sensitivity | Mic 1 & Mic 2: 4 mV |
| AUX Input Sensitivity | AUX 1, 2 & 3: 550 mV |
| Line Out | 750 mV |
| Frequency Response | 60 Hz 20 kHz (3 dB) |
| Output Modes | 100 V / 70 V / 416 (COM) |
| Signal-to-Noise Ratio | 80 dB |
| Voice Priority Mute | Mic 1 |
| Tone Controls | Bass @ 100 Hz (10 dB), Treble @ 10 kHz (10 dB) |
| AC Power Consumption | PA-120: 200 W / PA-200: 310 W |
| Mounting | Free standing |
| Dimensions (H W D) | 65 440 290 mm |
| Note | Either MP3 or AUX 3 can be played at one time. Do not use AUX 3 when using the built-in music player. |
