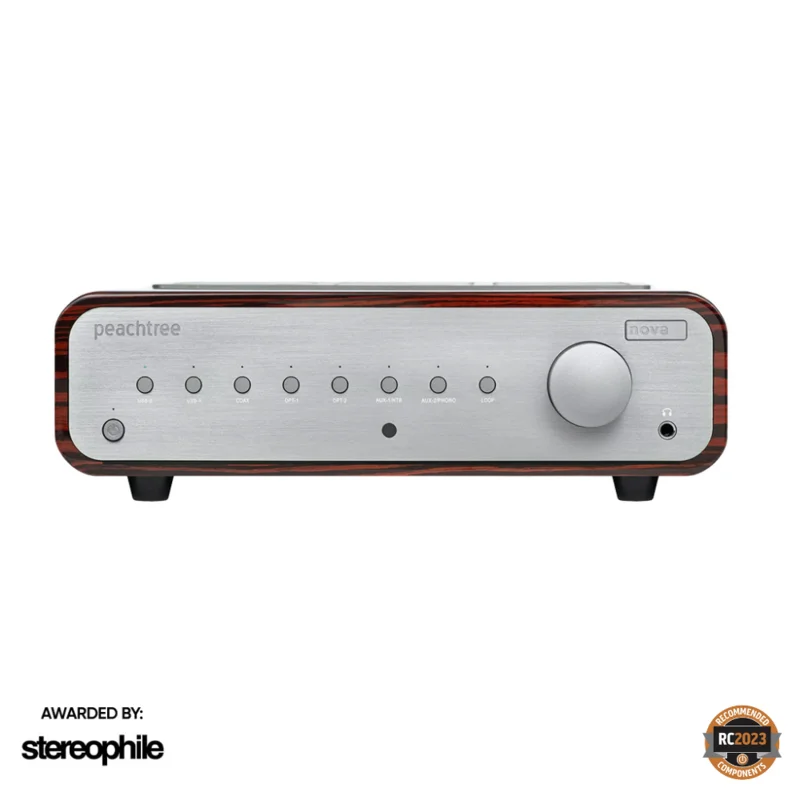

Peachtree Audio nova300

Description

Peachtree Audio nova300

• ESS Reference 9018K2M Sabre DAC
• 32-Bit/384kHz PCM and 5.6MHz DSD (double-DSD) compatibility
• New generation ICEPower amplification – 300 watts per channel @ 8
• 450 watts per channel @ 4
• Extensive internal grounding
• Designed by a world-class engineering team
• Asynchronous USB, Coax and (2) Optical inputs
• Asynchronous iOS input for direct digital input from Apple Lightning devices – with exclusive Peachtree DyNEC (Dynamic-Noise Elimination Circuit) technology
• Phono (MM) input
• Home Theater Bypass
• Loop feature to add an external tube buffer, EQ or other processor into the signal path
• Pre-Out for use as preamp/DAC or with subwoofer
• Discrete custom-designed headphone amplifier

Technical Specification

• SPEAKER OUTPUT
  Compatible Speakers – 2.5-16
  Output Power (WPC, 8 | 4, <1% THD+N, AES17) – 300 | 450
  Dynamic Range (A-weighted) – 105dB
  Damping Factor (1kHz, 8) – >625
  Frequency Response (20 – 20kHz) – <+/-0.4dB
  Inter-Modulation Distortion – >80dB below fundamental
  Total Harmonic Distortion (AES17, 1kHz, 4) – 0.005%
  Channel Separation (1kHz, 8) – >90dB

• PREAMP OUTPUT
  Output Voltage (rms) – 3.8V
  Output Impedance – 100
  Signal-to-Noise Ratio (Analog | Digital Source, un-weighted) – 105dB | 105dB
  Channel Separation (1kHz) – >115dB
  Frequency Response (Analog | Digital Source, 8Hz-20kHz) – <0.1dB | <0.5dB
  Total Harmonic Distortion – 0.003% (2V rms, 1kHz, un-weighted)

• HEADPHONE OUTPUT
  Output Power (32, rms | peak) – 1200mW | 2770mW
  Output Power (300, rms | peak) – 330mW | 700mW
  Output Power (600, rms | peak) – 170mW | 350mW
  Output Impedance – 1
  Signal-to-Noise Ratio (Analog | Digital Source, un-weighted) – 107dB | 106dB
  Dynamic Range (Analog | Digital Source, un-weighted) – 107dB | 100dB
  Channel Separation (1kHz) – >100dB at 1kHz
  Frequency Response (Digital source, 8Hz-20kHz) – <0.5dB
  Frequency Response (Analog source, 8Hz-100kHz) – <0.1dB
  Total Harmonic Distortion – 0.003% (2V rms, 1kHz, un-weighted)
• USB-B Input
  Formats – PCM and DSD
  PCM Sampling Rate and DSD Frequency Rate – 16-32 Bit, 44.1-384kHz PCM
  2.8224-5.6448MHz DSD
• COAX and OPT Inputs
  Formats – 16-24 Bit, 44.1-192kHz PCM
• AUX Inputs
  Maximum Voltage (rms | peak-to-peak) – 3.5V | 10V
  Impedance – 100k
• PHONO Input
  Maximum Input Voltage (rms) – 120mV
  Impedance – 47k
  RIAA EQ – No rumble filter used
• LOOP Output and Input
  Maximum Voltage (rms | peak-to-peak) – 3.5V | 10V
  Impedance (input | output) – 100k | 100
• AC Power
  AC Input – 100-240VAC, 50/60Hz
  Maximum Power Consumption – 1200W
  On Mode (Idle) Power Consumption – 32W
  Standby Mode Power Consumption – <0.5W
  Fuse – 100-120VAC: 8A/250V Medium Acting
  220-240VAC: 4A/250V Medium Acting
• Physical
  Height (including feet) – 4.37 inches | 111 mm
  Width – 14.02 inches | 356 mm
  Depth (including volume knob and speaker binding posts) – 14.25 inches | 361.95 mm
  Weight (shipping weight) – 17 lbs (21 lbs) | 7.7 kg (9.5 kg)
