Description

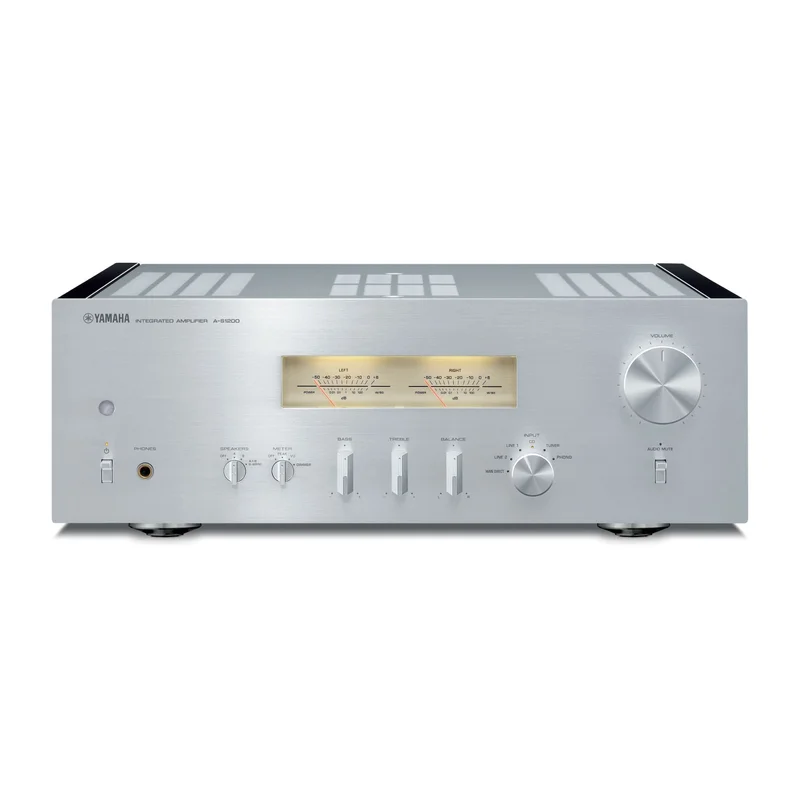

A-S1200Integrated Amplifier
Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.
- High quality components delivering exceptional musical expression
- Toroidal power transformer with enormous energy for a pure musical sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Floating balanced power amplifier
- Mechanical ground concept maximizes rigidity for expressive and rhythmic bass.
| Rated Output Power | [20 Hz-20 kHz, 0.07% THD] 90 W 90 W (8 ohms), 150 W 150 W (4 ohms) |
|---|---|
| High Dynamic Power/Channel (8/6/4/2 ohms) | 105/135/190/220 W |
| Damping Factor | 250 (1 kHz, 8 ohms) |
| Frequency Response | +0 / -3 dB (5Hz-100kHz) , 0 / -0.3 dB (20 Hz-20 kHz) |
| RIAA Equalization Deviation | /-0.5 dB (PHONO (MM/MC)) |
| Total Harmonic Distortion (20Hz to 20kHz) | PHONO MCLINE2 OUT: 0.02% (1.2 Vrms), PHONOLINE2 OUT: 0.005% (1.2 Vrms), CD, etc.SP OUT: 0.035% (50 W/8 ohms |
| Signal-to-Noise Ratio | PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB |
| Input Sensitivity | [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms |
| Transformer | 625VA (Toroidal) |
| Dimensions (W x H x D) | 17-1/8″ x 6-1/8″ x 18-1/4″ |
| Weight | 48.5 lbs |
