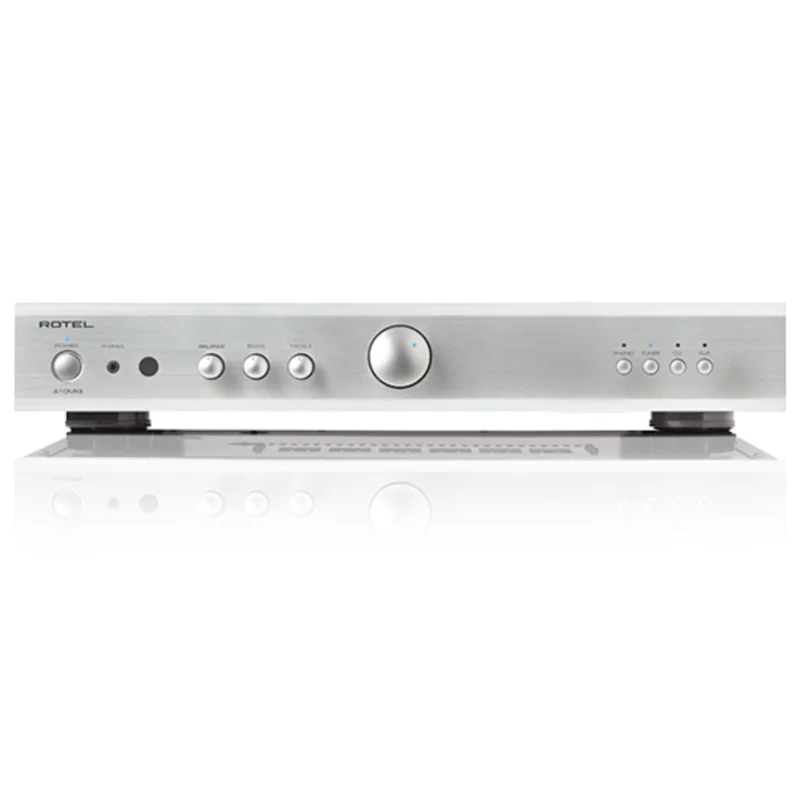

Rotel A10MKII Silver

Description

A10MKII

The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience. Constructed with a massive Rotel-built toroidal transformer, the A10MKII delivers 50 Watts per channel of Class A/B power into 8 ohms featuring three RCA inputs and a Moving Magnet Phono stage for vinyl lovers.

Technical Specifications :

DIMENSIONS (W H D)430 73 347mm
17 x 2 7/8 x 13 5/8FRONT PANEL HEIGHT60 mm (2 3/8)POWER REQUIREMENTS230V, 50HzPOWER CONSUMPTION150WNET WEIGHT6.6 kg, 14.5 lbsBTU RATING(4, 1/8th power)450 BTU/h
POWER OUTPUT50W/Ch (8)60W/Ch (4)TOTAL HARMONIC DISTORTION (THD)<0.03%FREQUENCY RESPONSELine Level Inputs: 10Hz – 100kHz, -0.5dB, +0.05dBPhono Input: 20Hz – 20kHz, -0.5dB, +0.3dBS/N RATIO(IHF “A” Weighted)
Line Level Inputs: 90 dB (Max Volume)Line Level Inputs: 98 dB (Min Volume)Phono Input: 85dB
INTERMODULATION DISTORTION(60Hz:7kHz, 4:1)<0.03%DAMPING FACTOR120INPUT SENSITIVITYLine Level Inputs: 120mVPhono Input (MM): 1.5mVINPUT IMPEDANCELine Level Inputs: 45kPhono Input (MM): 43kINPUT OVERLOADLine Level Inputs: 4VPhono Input: 50mVTONE CONTROLS6dB at 100Hz / 10kHz
