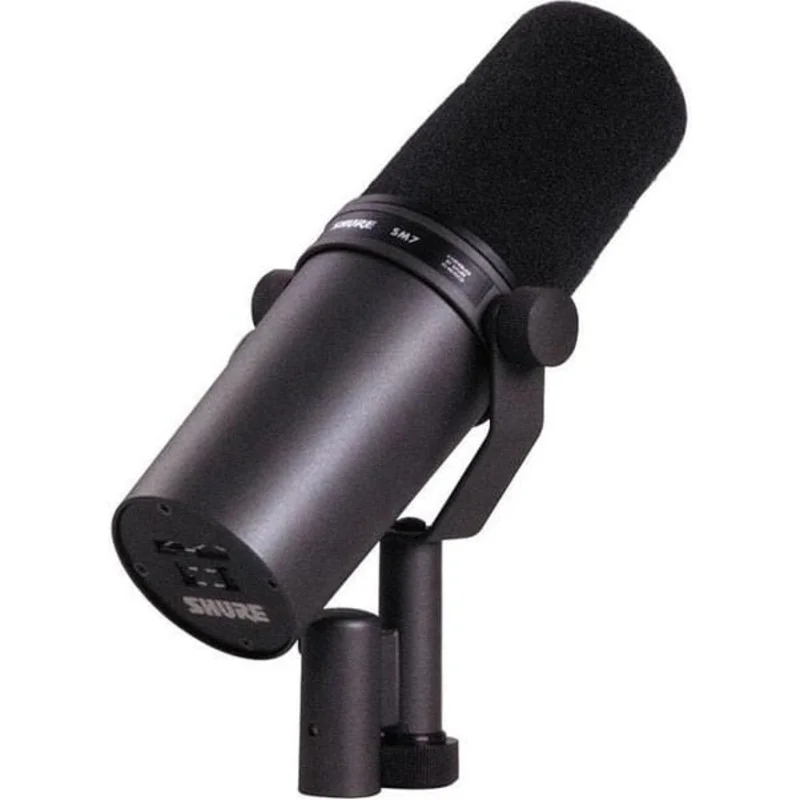

Shure SM7B

Description

Cardioid studio microphone delivers warm and smooth audio reproduction in close-proximity studio and vocal applications. Features include wide-range frequency response, bass roll off and mid-range control, and internal air suspension shock isolation.

KEY FEATURES

• Flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech
• Bass rolloff and mid-range emphasis (presence boost) controls with graphic display of response setting
• Improved rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by computer monitors
• Internal “air suspension” shock isolation virtually eliminates mechanical noise transmission
• Highly effective pop filter eliminates need for any add-on protection against explosive breath sounds, even for close-up vocals or narration
• Now shipping with the A7WS detachable windscreen, designed to reduce plosive sounds and gives a warmer tone for close-talk vocals
• Yoke mounting with captive stand nut for easy mounting and dismounting provides precise control of microphone position
• Classic cardioid polar pattern, uniform with frequency and symmetrical about axis, to provide maximum rejection and minimum coloration of off-axis sound
• Rugged construction and excellent cartridge protection for outstanding reliability

Technical Specification

• Type – Dynamic
• Frequency Response – 50 to 20,000 Hz
• Polar Pattern – Cardioid
• Electromagnetic Hum Sensitivity (Typical, Equivalent SPL/milliOersted) – 60 Hz: 11 dB
  500 Hz: 24 dB
  1 kHz: 33 dB
• Impedance – 150 ohms for connection to microphone inputs rated at 19 to 300 ohms.
• Output Level (at 1,000 Hz) – Open Circuit Voltage: 59.0 dB (1.12 mV)
• Switches – Bass rolloff and mid-range emphasis: Slotted response selector switches.
• Cartridge Shock Mount – Internal air-suspension shock and vibration isolator.
• Microphone Connector – Three-pin professional audio (XLR)
• Swivel Assembly – Integrated, captive nut for ease of attachment to stand, fits 5/8 in.27 thread.
• Polarity – Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3.
• Case – Dark gray enamel aluminum and steel case with dark gray foam windscreen.
• Net Weight – 765.4 grams (1 lb, 11 oz)
