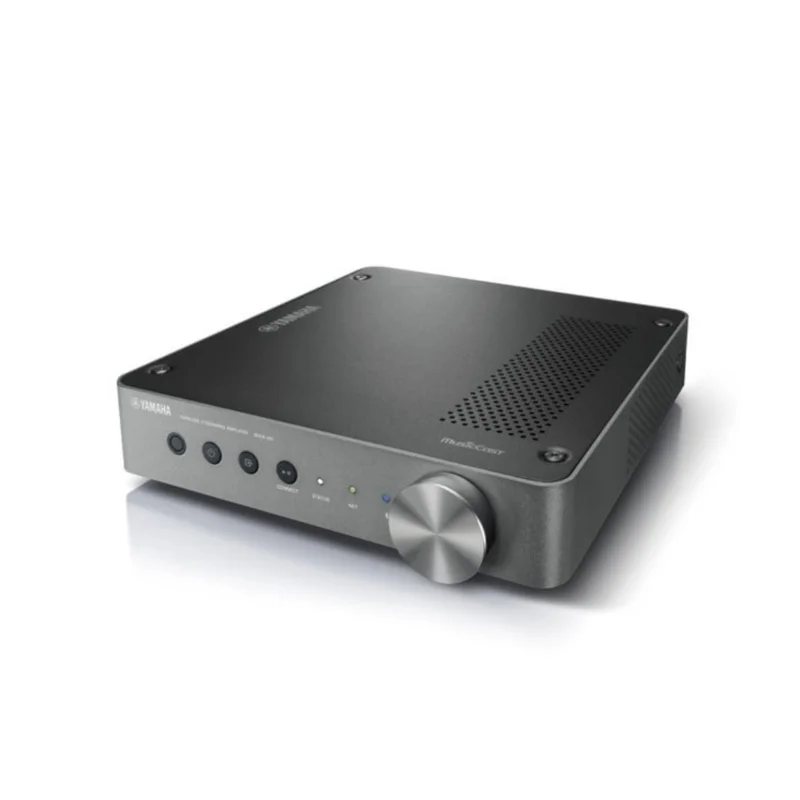

Yamaha WX-A50

Description

The WXA-50 is a new-concept audio component that goes beyond conventional audio thinking. It let you access a wide variety of audio content such as music from streaming services or stored on a smartphone, and enjoy high quality sound and style thanks to the ability to network with Yamahas exclusive MusicCast multi-room audio system. High functionality and performance bring you musical enjoyment just the way you want it.

• Simply by adding to your speaker system, enjoy streaming music or a full MusicCast (multi-room audio) system
• 2.1-Channel powerful sound
• — 90 W per channel (6 ohms, 1 kHz, 0.9 % THD, 1-ch driven)
• — 70 W per channel (6 ohms, 20 Hz-20 kHz, 0.06 % THD, 2-ch driven)
• Compatible with all types of music sources and services, such as streaming services
• MusicCast App for easy operation. The app lets you control other MusicCast-compatible components
• One push play Pressing any button turns the unit on and initiates playback of the previously selected source
• Retro modern and superior quality
• 48-bit digital volume control is far greater than the input signal bit resolution, achieving high quality control
• Supports DSD 5.6 MHz and FLAC / WAV / AIFF 192 kHz / 24-bit for high resolution reproduction
• Compact body only 214 mm (8-3/8″) wide fits in any convenient location, can be used horizontally or vertically.
• Easy installation – Suitable size for 1U rack with a width of 214 mm (8-3/8″) and height of 42 mm (1-5/8″) (without feet).
• Low standby power consumption: 1.8 W

Technical Details

General Information

• DLNA Version:
  1.5
• File Format Compatibility:
  MP3, WMA, MPEG4 AAC, WAV, FLAC, AIFF, ALAC, DSD
• Wi-Fi:
  Yes
• AirPlay:
  Yes
• Bluetooth:
  Yes (SBC / AAC)

Performance

• Rated Output Power:
  • 105 W + 105 W (4 ohms, 20 Hz20 kHz, 0.06% THD, 2-ch driven)
  • 70 W + 70 W (6 ohms, 20 Hz20 kHz, 0.06% THD, 2-ch driven)
  • 55 W + 55 W (8 ohms, 20 Hz20 kHz, 0.06% THD, 2-ch driven)
• Maximum Output Power:
  90 W + 90 W (6 ohms, 1 kHz, 0.9% THD, 1-ch driven)
• Pure Direct:
  Yes
• Total Harmonic Distortion (20 Hz20 kHz):
  0.02% (SP out)
• Signal-to-Noise Ratio:
  • 110 dB (Opt / Net / USB / Bluetooth in)
  • 98 dB (Aux in)

Connectivity

• Audio In / Out:
  1 / 1
• Digital Input:
  1 (Optical) / 0
• USB Input:
  1
• Ethernet Port:
  1
• Subwoofer Out:
  1
• Remote In / Out:
  1 / 0
• Control (Trigger) In / Out:
  1

Power Consumption

• Standby Power Consumption:
  1.8 W

Physical Specifications

• Dimensions (W x H x D):
  • With Antenna:
    8-3/8 x 4-7/8 x 9-5/8
  • Without Antenna and Feet:
    8-3/8 x 1-5/8 x 9-5/8
• Weight:
  1.94 kg
